VR

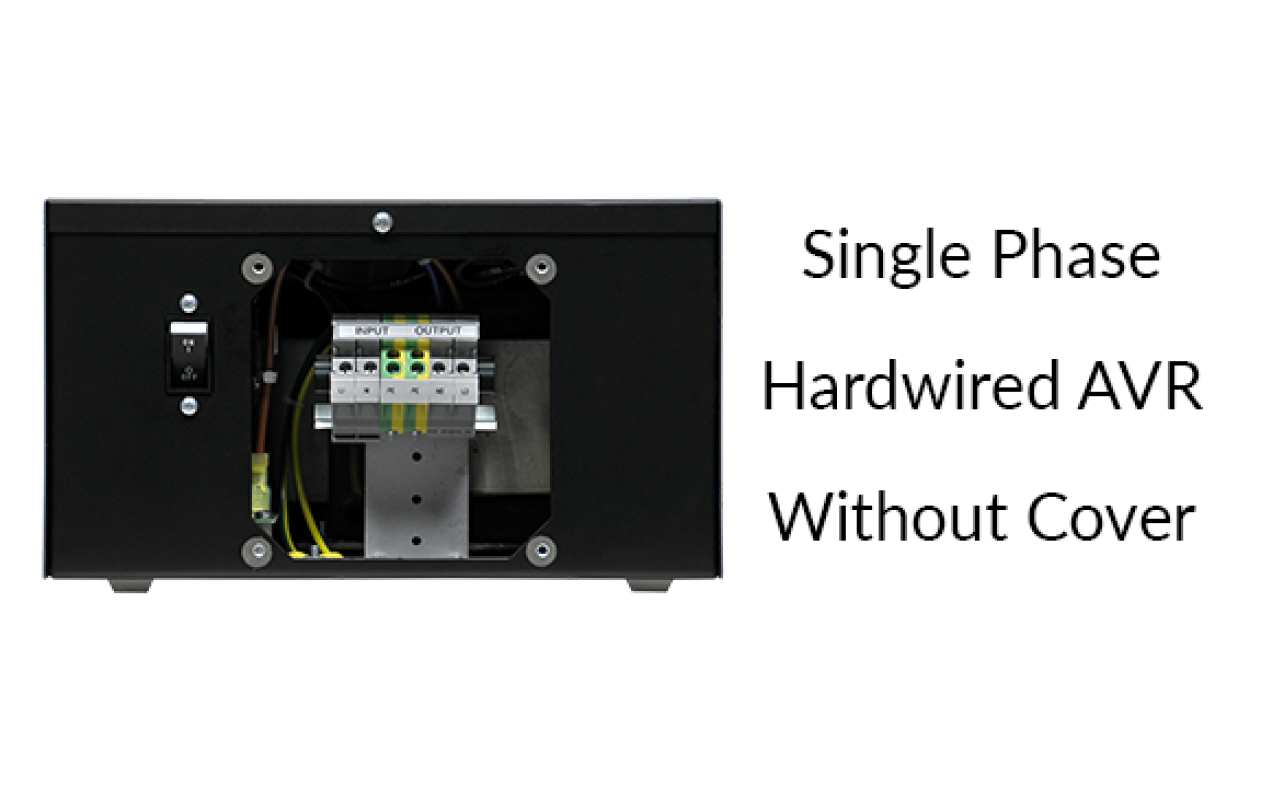

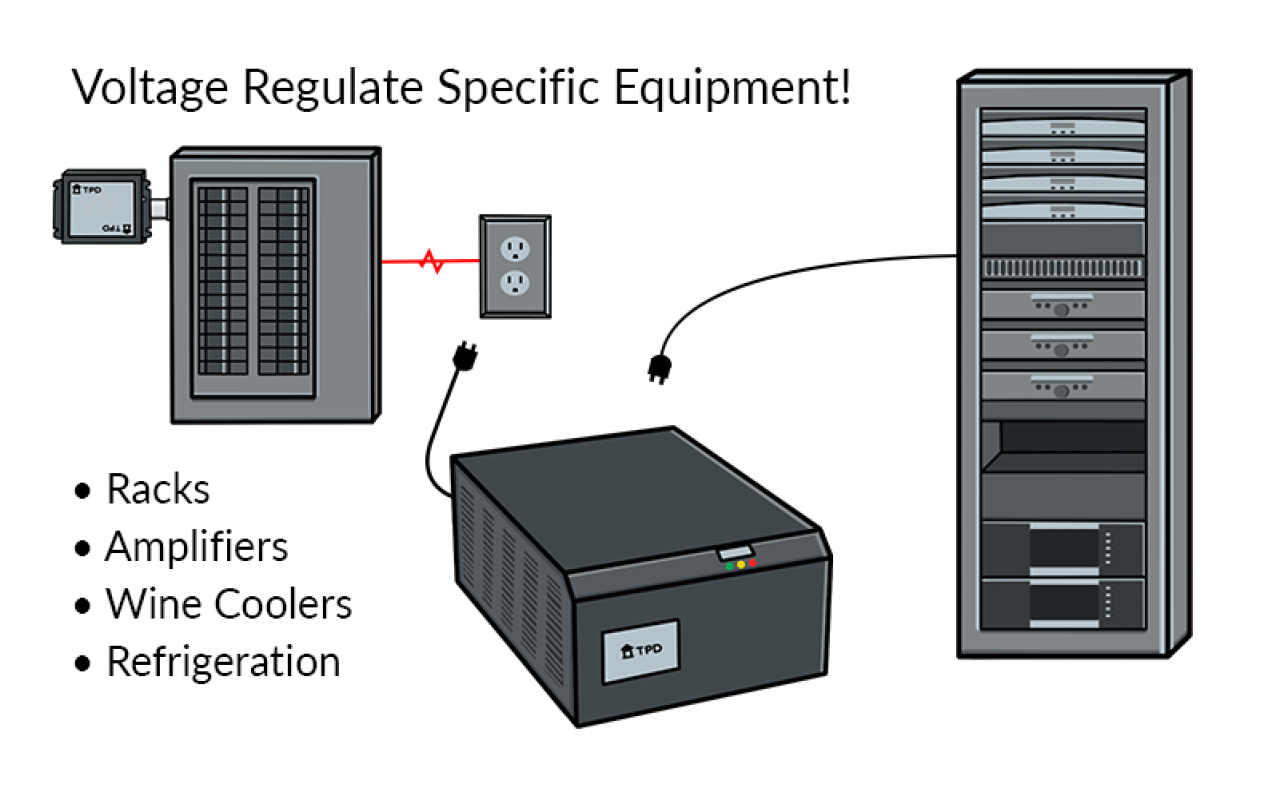

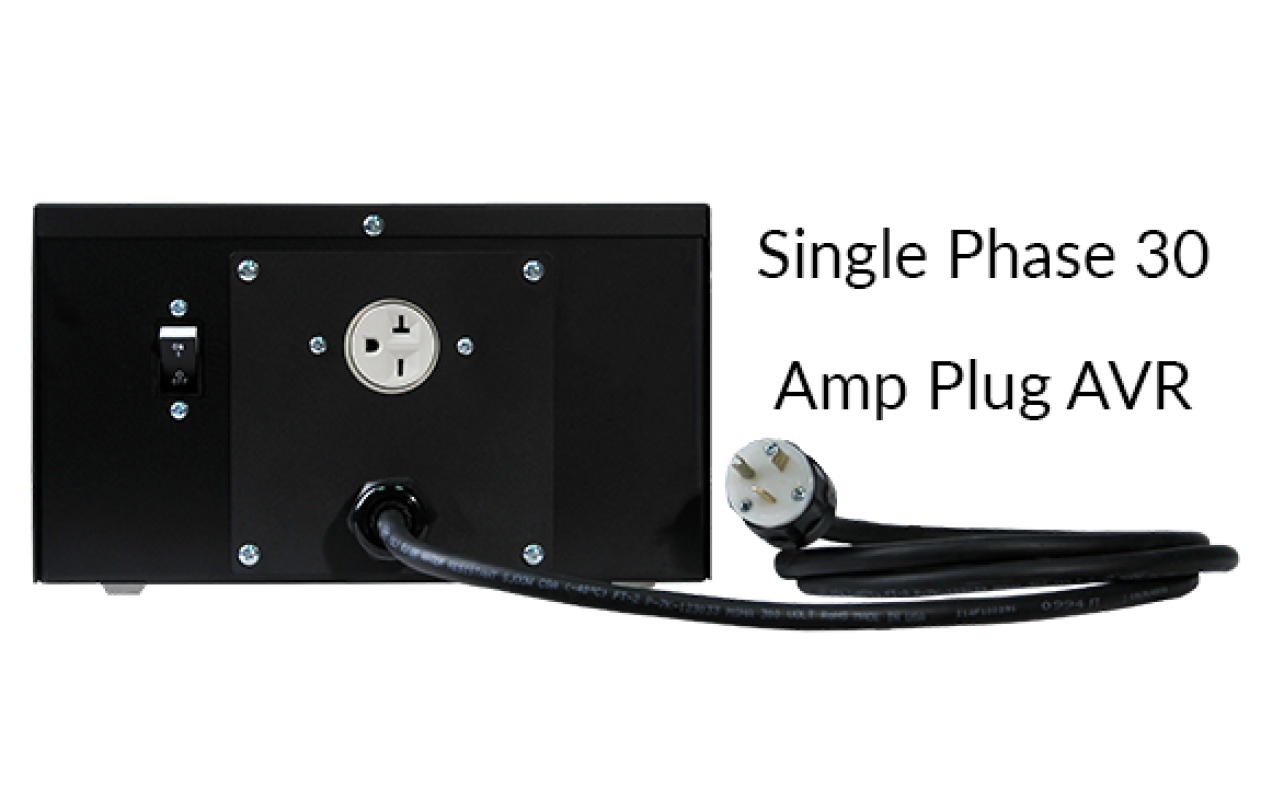

Voltage Regulation Plug-In or Hardwired

120V Voltage Regulation

*remove -P for hardwire option

240V Voltage Regulation

*remove -P for hardwire option

120/240V Voltage Regulation

What is Voltage Regulation?

Voltage regulation refers to the process of maintaining a consistent voltage level to ensure the proper functioning of electronic devices and equipment. This is becoming increasingly important as the demand for stable power rises, utility power problems happen more frequently, and electronics become more complex and sensitive.

Why Voltage Regulation Matters More Today

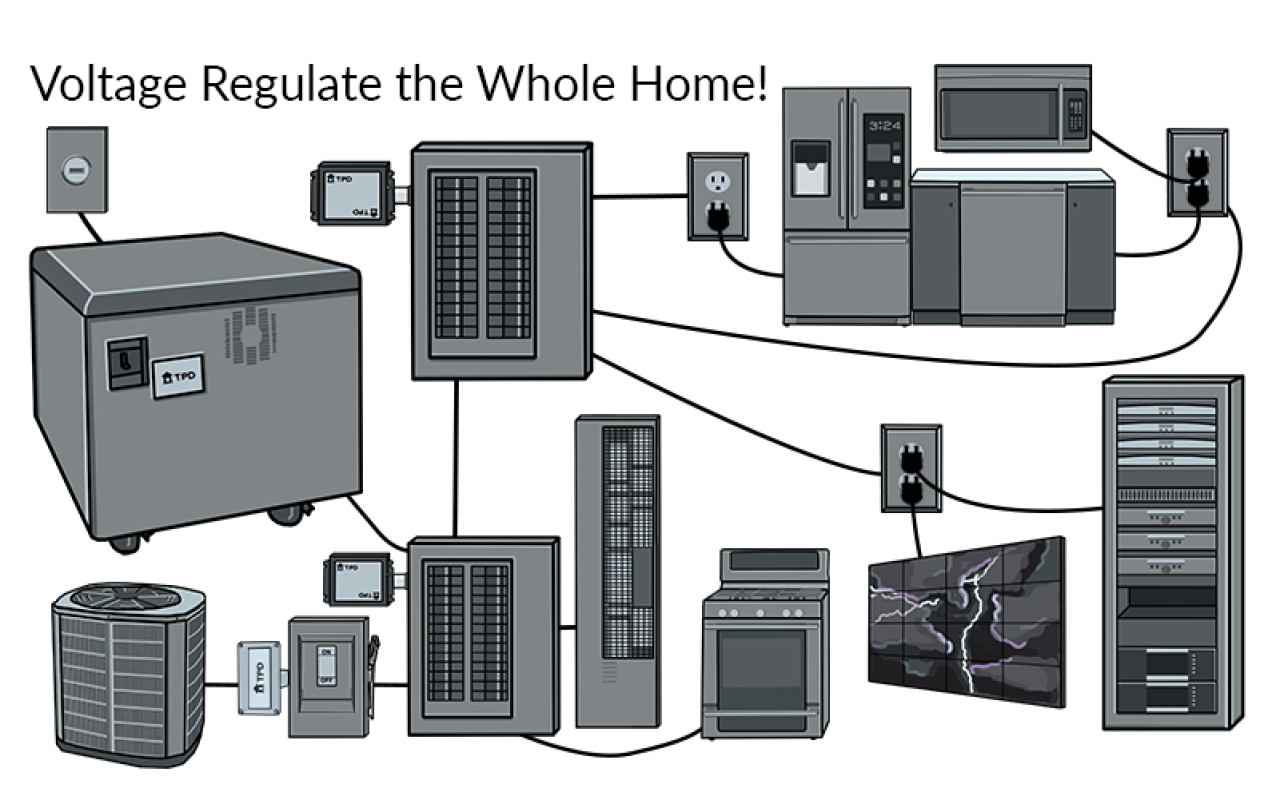

Homes have evolved into electrical ecosystems full of microprocessor-controlled devices that are more voltage-sensitive, digitally controlled, and more expensive to replace than ever before. Additionally, the utility grid is supplying more inconsistent power than ever, especially where neighborhoods are growing faster than grid upgrades. Voltage regulation ensures the home receives clean, stable, correct voltage, regardless of what the utility, generator, or local loads are doing.

Applications and Common Problems Solved

Modern homes are full of equipment that expects steady and correct voltage to operate. When voltage sags, surges, or fluctuates, electronics can lock up, refuse to start, or fail prematurely. Below are common situations that we have discussed with our dealers where a TPD Voltage Regulator solves ongoing performance issues:

1. Climate-Controlled Wine Cellars on a Generator

Many high-end wine storage systems fail to start or shut down during generator operation. The compressor controls in these systems are sensitive to voltage dips during generator transfer. Surge protection addresses the transient spike, but only voltage regulation ensures the unit receives a stable voltage, preventing lockups and no-start conditions.

Solution: Installing surge protection and voltage regulation helps the wine cellar run whether on utility or generator power.

2. Wolf, Sub-Zero, and Other Luxury Appliances on 208V

In many large homes, especially those with long service runs or 120/208V systems, appliances designed for 240V receive only 208V. While the equipment technically “runs,” during low voltage situations performance drops, heating elements struggle, and electronics lock up over time.

Solution: TPD voltage regulation regulates 208V power to proper voltage levels, so the appliance performs as designed.

3. EV Charging Systems and Electric Vehicles

EV chargers and vehicle onboard charging systems are voltage-dependent. Low or unstable voltage causes charging interruptions, fault codes, slow charging, thermal stress, and in some cases, equipment or battery damage.

Solution: Maintaining precise stable voltage ensures safe, reliable, and efficient EV charging that protects both charger and vehicle.

4. Mitsubishi and Other High-Efficiency HVAC Systems

Many variable-speed HVAC systems use a 24V control circuit derived directly from internal boards. Long thermostat wire runs, control relays, and aftermarket smart thermostats can cause low control voltage, leading to intermittent shutdowns or system lockouts.

Solution: A small control-side voltage stabilizer ensures the system receives a steady 24V, preventing nuisance lockouts and expensive troubleshooting calls.

Automatic Voltage Regulation Features and Benefits

Reliability
The TPD-VR is a 100% solid-state device that does not require batteries, making it an inherently reliable system.

Easy Installation and Service

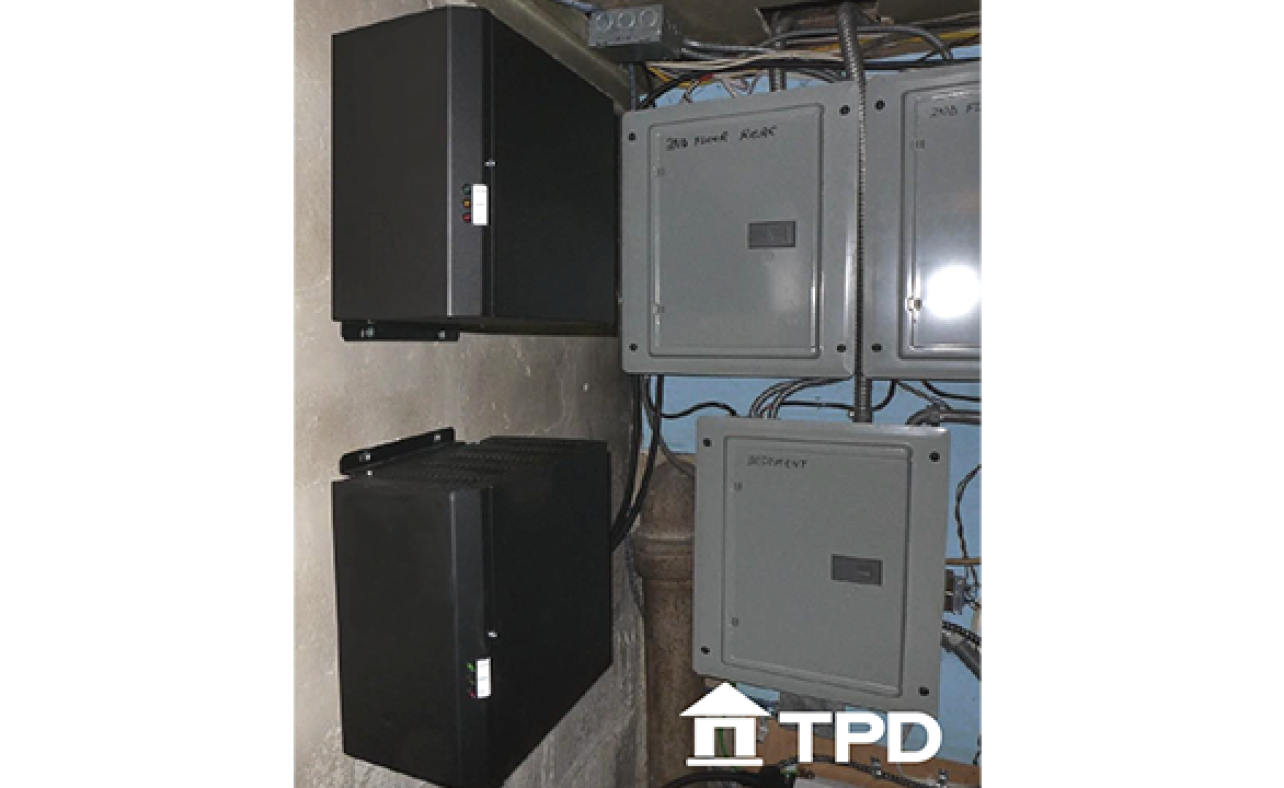

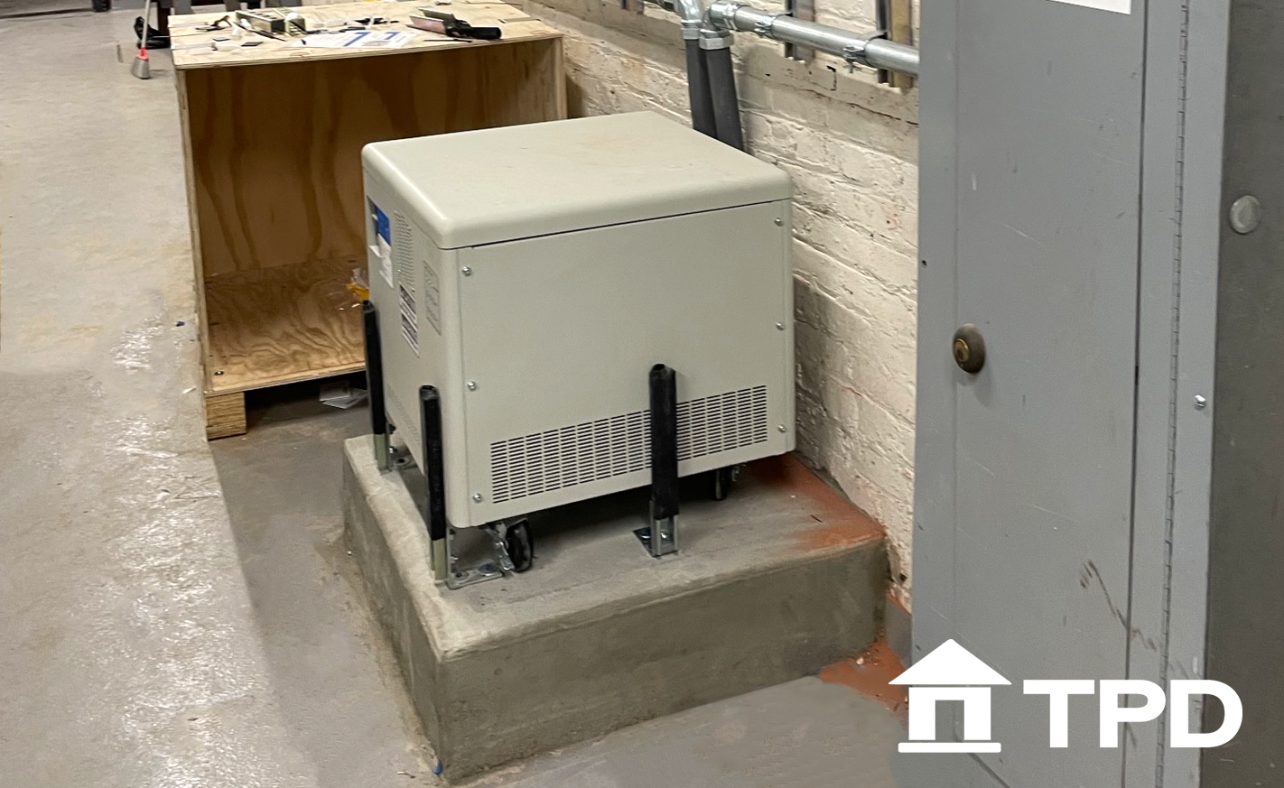

TPD-VR units can be installed and serviced by a local electrician.

Cost Savings
HVAC systems, refrigerators, and other large appliances run more efficiently with stable voltage. Stable voltage reduces the strain on motors and other components, decreasing maintenance needs and operational costs.

Seamless Operation of Sensitive Equipment

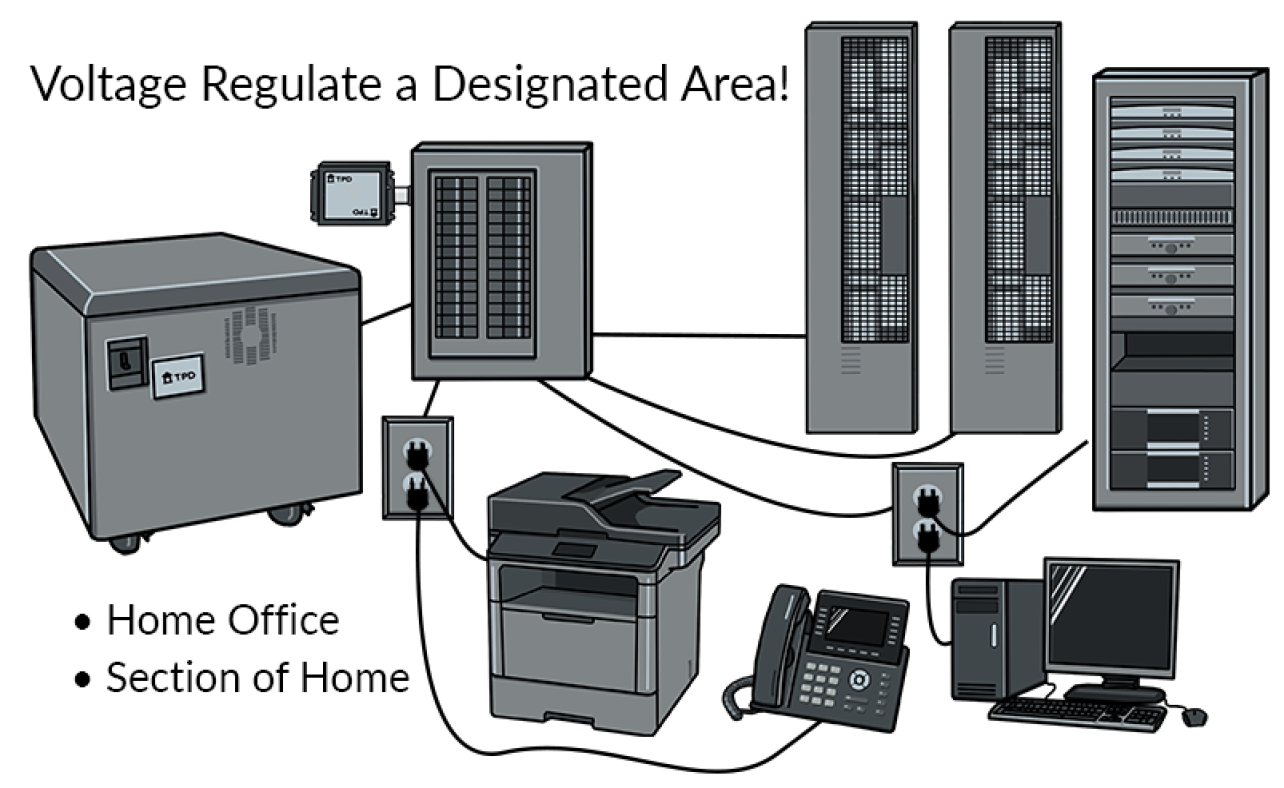

With stable voltage, devices operate more efficiently, reducing the risk of malfunctions or performance issues. Many smart home systems rely on consistent power for connectivity and operation. Voltage regulation helps maintain the reliability of these systems.

Enhanced Power Quality
EV chargers can put a significant load on a home’s electrical system. Voltage regulation ensures they receive consistent power, optimizing charging times and protecting both the charger and the vehicle's battery.

Clean Power For Modern Electrical Demands
VFDs in modern HVAC systems adjust motor speeds to enhance efficiency. Stable voltage is crucial for their optimal operation, ensuring comfort and energy savings.

Future-Proofing
As homes incorporate more advanced technologies and higher power demands, voltage regulation systems can adapt to these changes, providing a stable foundation for future upgrades and innovations.

Prevent Costly Damage
AC input circuit breakers and load over-current protection prevents costly equipment damage.

Various Applications
The TPD-VR is useful in many applications such as with LED Lighting, Home Automation, Security, HVAC Systems, Appliances, Security and Surveillance systems, Home Theaters, Sound Systems, EV Charging Stations, and more.

Input Range
Wide input range (± 20%) and precise output regulation (± 2.5%) provides superior performance.

TPD-VR Product Information

Two-Year Limited Warranty on Parts and Labor
Wide input range
98% or Higher Power Efficiency
Designed to Meet UL 60950
System Status Indicator
8 ms (1/2 Line Cycle) Typical Voltage Correction Time
