SLP Communication Lines Surge Protection

Surge protect low voltage communication lines for HVAC, thermostats, pool controls, security, irrigation systems, and 4-20mA current loops with TPD products. Control wires between systems are pathways for surge events to enter and leave the system traveling to other equipment when left unprotected. Protect sophisticated equipment by using the TPD-SLP series on copper pathways entering or leaving the facility and between systems that have had damage.

Downloads

TPD-SLP Series Data Sheet

TPD-SLP Series Installation Manual



Learn More

Gate Electronics Surge Protection

HVAC Equipment Surge Protection

Building Management Surge Protection



Low Voltage Communication Surge Protection

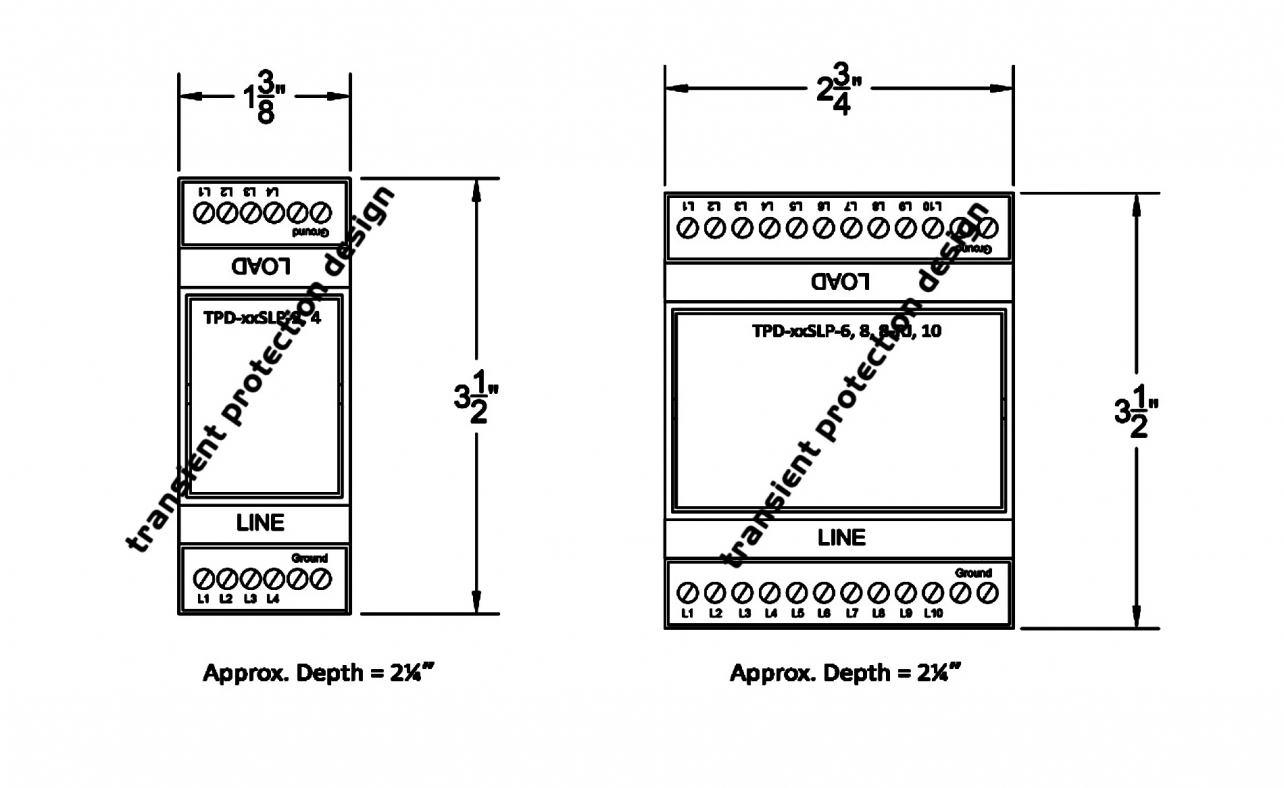

TPD-xxSLPyy
XX
= Operating Voltages 10V, 15V, 24V, 48V, 120V and 190V
YY = 2, 4, 6, 8, 10 and 8-RJ45

Examples:

Surge Protect 2 Wire at 24V: TPD-24SLP2

Surge Protect 4 Wire at 24V: TPD-24SLP4

Surge Protect 6 Wire at 24V: TPD-24SLP6

Surge Protect 8 Wire at 24V: TPD-24SLP8

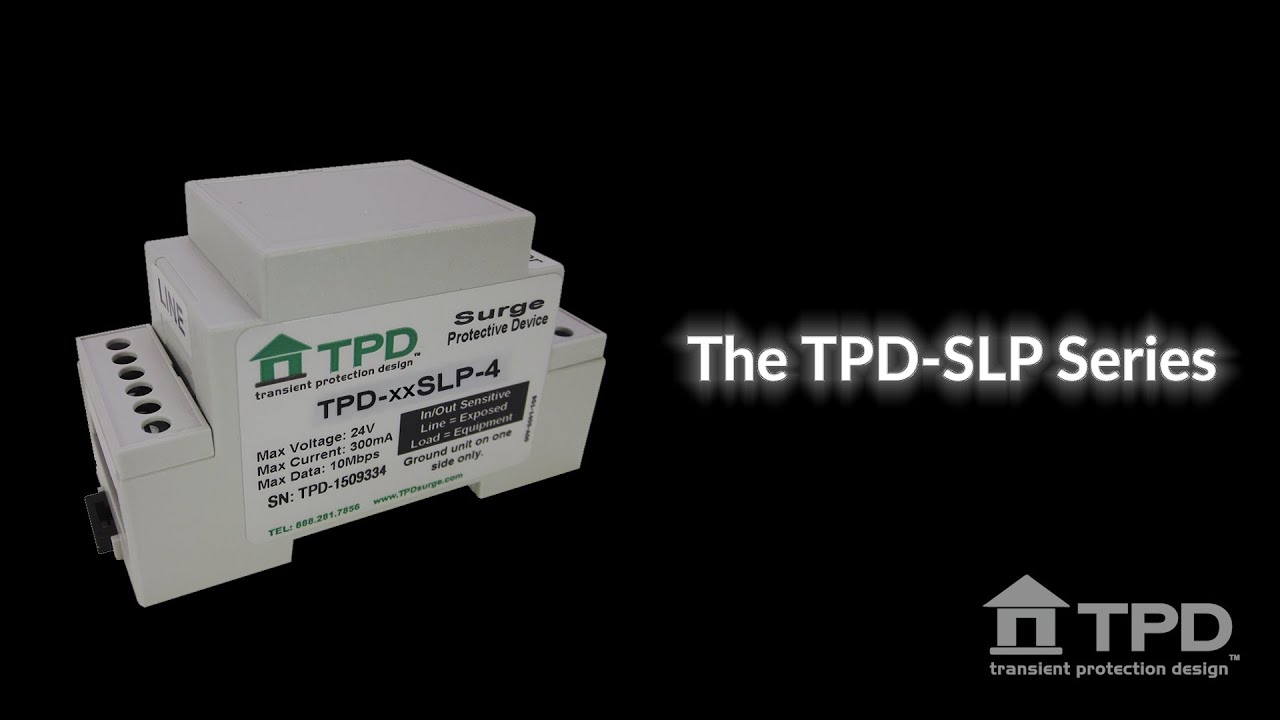

TPD-SLP Series Product Information

Surge Protection
Lightning Suppressor
Max Amperage: 400mA
Max Data Rate: 10Mbps
Response Time: < 1 nanosecond
Strength: 16kA per pair
Ten Year Unlimited Free Replacement Warranty
Series Resistance: < 0.1 ohm
Enclosure Type: High impact, Non metallic
Din rail or screw down mountable
