Accessories for Surge Protection

Ground Bar for Surge Protection.  Grounding point for multiple grounds coming from data surge suppressors

Din Rail for Mounting Surge Protectors

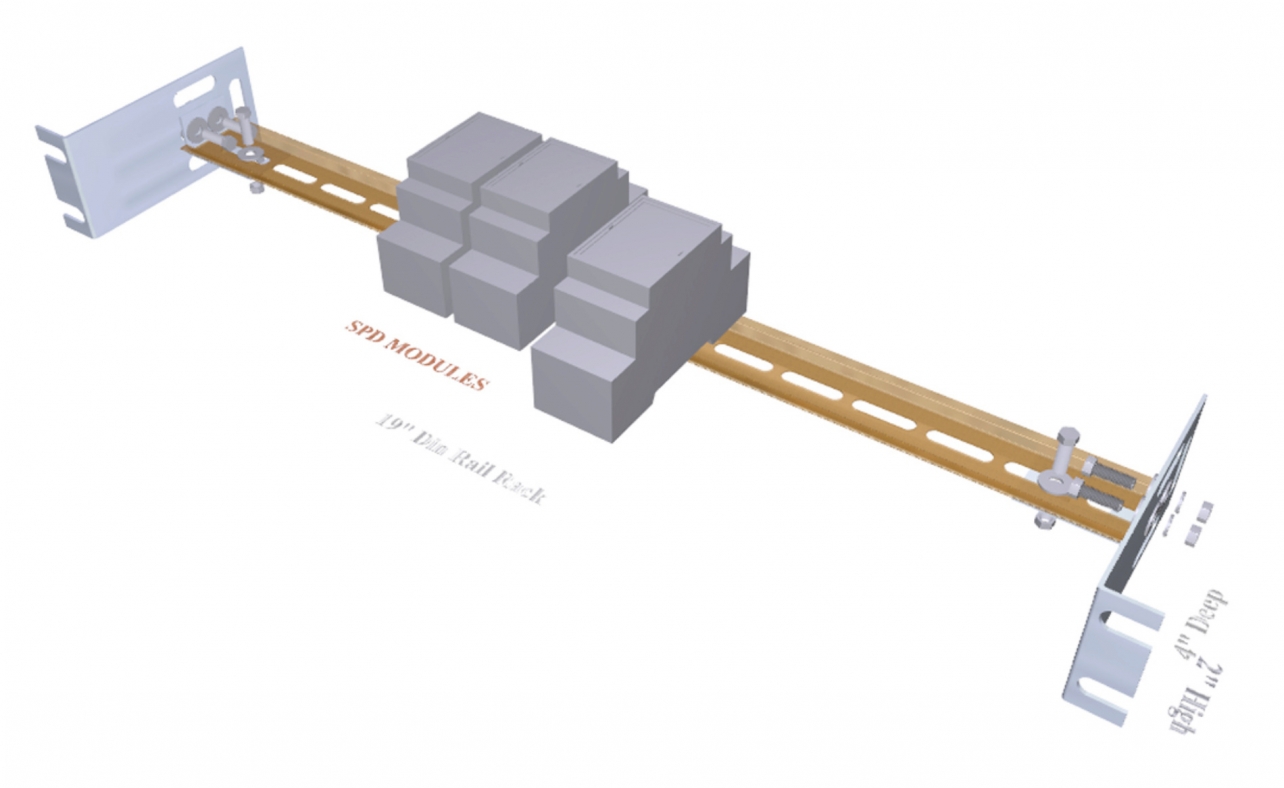

Rack Mount for surge protectors is 19 Inch Rack Mountable din rail with 1 and 2 Layer Options

Grounding Bar has seven terminal copper ground bar with isolated mounting feet

Din Rail is 35mm Wide, Approximately 3.5 or 11.5 inches in length



Model Numbers & Specs
TPD-GRD-7
TPD-DINRAIL-3
TPD-DINRAIL-6
TPD-DINRAIL-9
TPD-DINRAIL-12
TPD-RACKMOUNT-1
TPD-RACKMOUNT-2

Ground bar with 7 terminals.  Use multiple wires per terminal when possible.  Land multiple data surge suppressor grounds wires to ground bar with one ground wire to ac power ground.

Surge suppressors can be din rail or screw down mounted without din rail.  Please see images.
