LIT Programmable Links and Power Supply Surge Protection
Surge protect programmable links and power supplies, keypads, contact closures, and driveway sensors designed for high-end brands such as Lutron, Crestron, Vantage, and Control 4. 24V or 36V, 500kbps, 5 Amps Max, 4, 12 and 24 wire options with the TPD-LIT series.
Programmable Links and Power Supply Surge Protection
Surge Protect 4 Wires at 24V: TPD-24LIT4
Surge Protect 12 Wires at 24V: TPD-24LIT12
Surge Protect 24 Wires at 24V: TPD-24LIT 24
Surge Protect 4 Wires at 36V: TPD-36LIT4
Surge Protect 12 Wires at 36V: TPD-36LIT12
Surge Protect 24 Wires at 36V: TPD-36LIT24

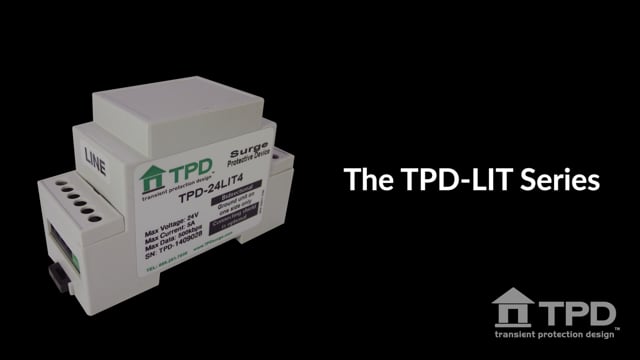

TPD-LIT Series Product Information
Keypads, Driveway Sensors, Power Supplies & Contact Closures
TPD-xxLITyy (Example TPD-24LIT4 which is a 24V, 4 wire protector)
XX = Operating Voltage 24V or 36V systems
(use 24V for 5 to 24 volt; use 36V for 25 to 36 volt)
YY = Number Of Terminals 4, 12 or 24 terminal
Max Amperage: 5 Amps
Max Data Rate: 500kbps
Response Time: < 1 nanosecond
Strength: 6kA per pair; 3kA per wire
Ten Year Unlimited Free Replacement Warranty
Series Resistance: < 0.1 ohm
Enclosure Type: High impact, Non metallic
Din rail or screw down mountable
