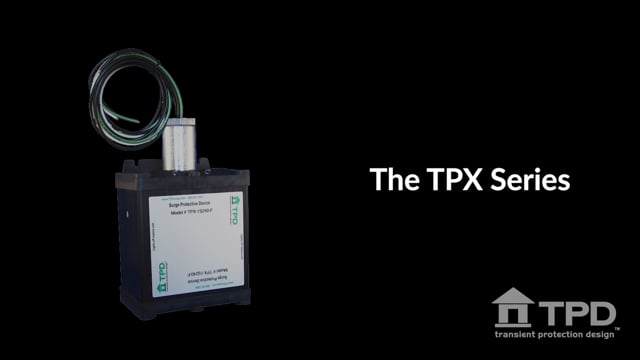

TPX 100 Surge Protection
Surge protect breaker panels and VFD (Variable Frequency Drives), service entrance panels, distribution panels, disconnects, pool panels, gate panels and well pumps indoors and outdoors. Weatherproof rated. Protect electronics from lightning and surge related damage to electronics. The TPX-1S240-F100 breaker panel surge protector will extend the life of electronics and improve electronic reliability. The TPX series is a surge protection option to protect breaker panels from harmful electrical disturbances that could destroy equipment and cause downtime to your systems. Surge protection made simple with Transient Protection Design.
The Ultimate Power Protection Plan
Mix and match TPX units to create the most appropriate and cost effective solution for the job.
Service Entrances
This will give the entire building a primary layer of surge protection.
800 Amps and above: TPX-1S240-F-200
400 Amps and above: TPX-1S240-F-150
200 Amps and above: TPX-1S240-F-100
Breaker Panels
Surge protection and EMI/RFI filtration for each breaker panel. Protect from external surges such as lightning and load switching in addition to internal surges. Surges and transients are generated by equipment within the building such as elevators, office equipment, motors, and heating and air conditioning systems, all of which contribute to power disturbances.
TPX-1S240-F-100
Surge Protect Lighting Panels
Surges can find their way into any system from any direction. Surge protection is required at the lighting panel to ensure adequate protection for the lighting system, including processor and lighting circuitry.
TPX-1S240-F-100
Disconnects and Transfer Switches
Some equipment such as HVAC, well pumps, gates, pool equipment, elevators, and transfer switches not only need protection for their own electronics, but require protection so it does no affect the rest of the building.
TPX-1S240-F
TPX-1S240-CN
See our Generator and ATS page for additional locations to protect generator and transfer switch power.
Flush Mount Options
TK-TTLP-1S240-FL
TPX-FMK45
TTLP comes standard with flush mount trim ring. Looks best for flush mount applications.
To flush mount any TPX unit, order flush mount kit TPX-FMK45.
Individual 120V Circuit
Landscape lighting, gates, lighting controllers anything 120V that you want to hardwire surge protection.
TPD-LT120-20A
TPX 100 Product Information
Unlimited 15 Year Warranty Including Lightning
Enhanced Transient Filter
Eliminates Noise Between 1kHz and 100MHz
UL1283 EMI/RFI Filter
UL1449 4th Edition Surge Suppressor
TYPE 1 & Type 2 SPD
Nema 4 Weather Proof Enclosure
50kA Per Phase Peak Surge Current
100kAIC Short Circuit Current Rating
Can be installed on any amperage panel
Installation Notes
All units are weatherproof and can be installed indoor or outdoor.
For quick and versatile installation, all TPX units are prewired with #12 wire are internally fused. Surge protectors can be installed to any spare breaker or disconnect switch, or wired direct to the panel bus or lugs when no breaker is available. Typically, a 15, 20, 30 or 60 amp breaker is used. A tandem breaker can also be used in certain panels if the panel is full.
