TPX Flush Mount Enclosure

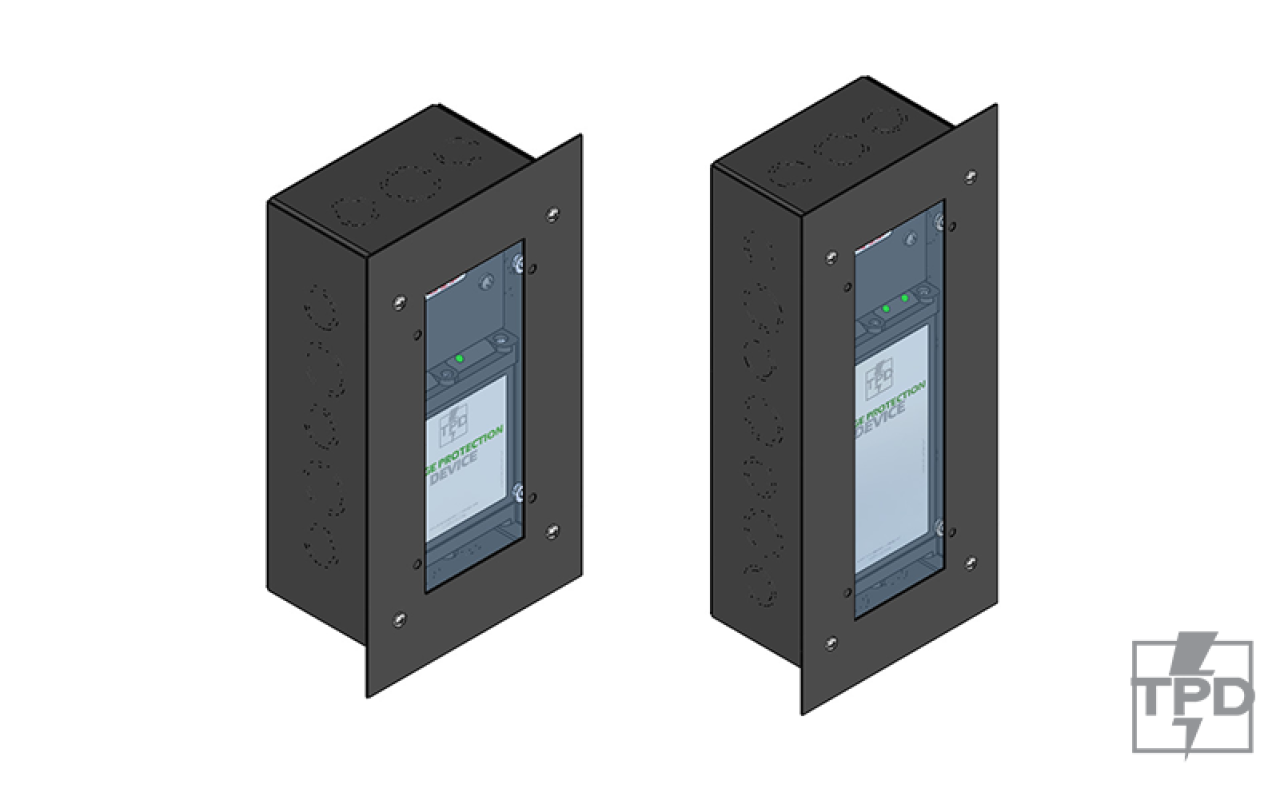

The TPX-FME steel flush-mount enclosure is a premium solution for integrating TPD’s TPX Series surge protection devices (SPDs) into luxury residential and commercial environments. Designed for installation above, below, or adjacent to an electrical panel, the recessed enclosure provides a clean, professional appearance while keeping conductor lengths short for optimal surge protection performance. A visible status indicator allows the SPD to be monitored without opening the enclosure, combining accessibility with a refined architectural finish. Ideal for luxury homes, custom residences, high-end commercial spaces, lighting and control systems, and other design-conscious projects, the TPX-FME delivers reliable electrical surge protection without compromising the appearance of the finished space.
TPX Flush Mount Enclosure
Correct FME Models for TPX Units
The TPX 50 and 100 series comes in various case sizes. Please see the below explanation for the correct flush mount enclosure model number. Please contact us with questions about sizing.

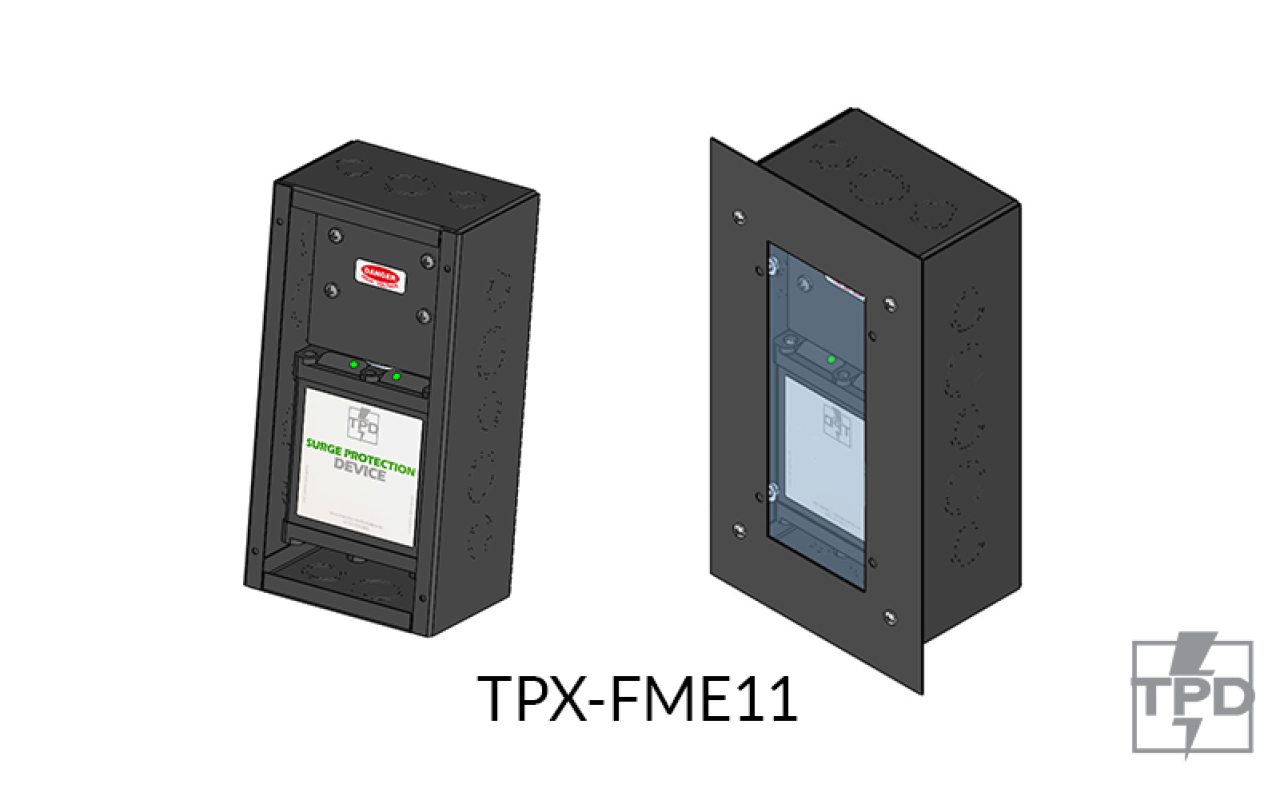

Single-Phase Applications: TPX-FME11* and TPX-1S240-F-100

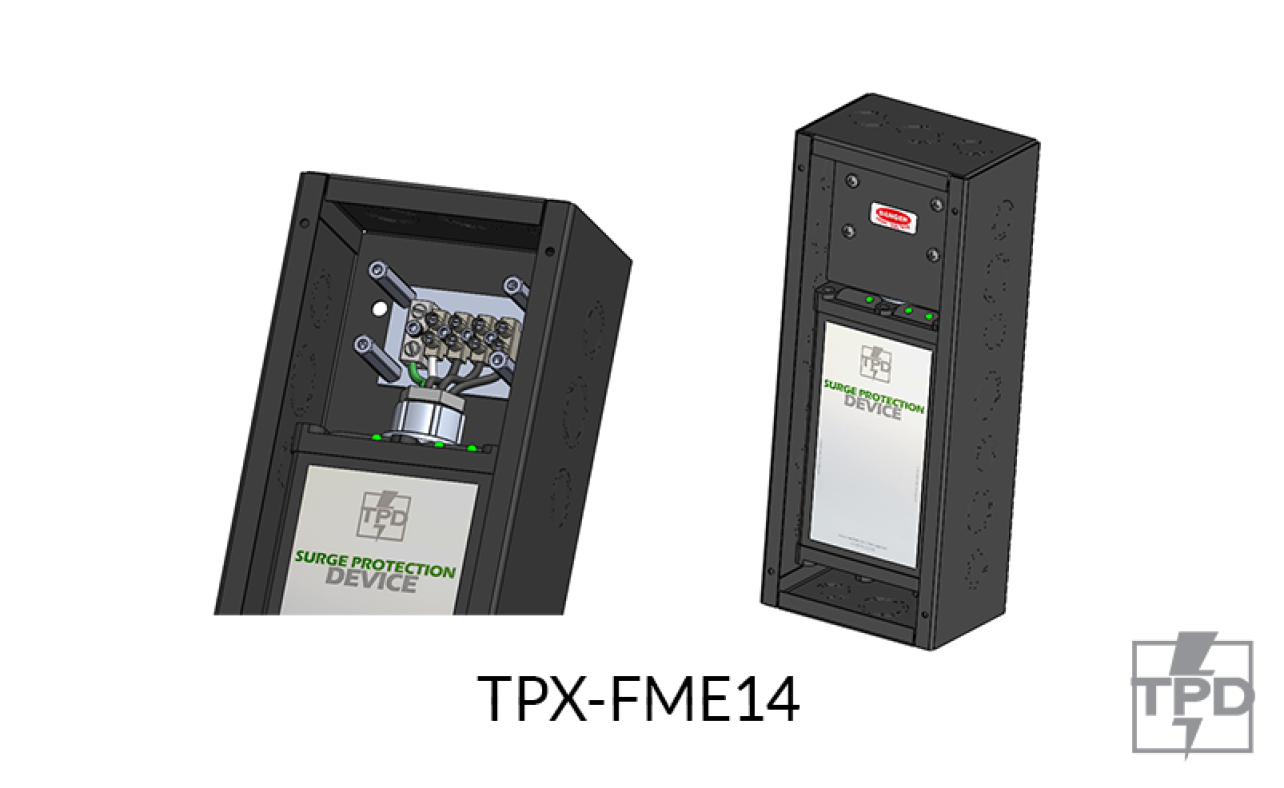

Three-Phase Applications: TPX-FME14 and TPX-3Y208-F-100
Pairing Chart
| TPX Model | TPX FME Model |
|
TPX-1S240-F |
TPX-FME11* |
|
TPX-3Y208-F |
TPX-FME11* |
|
TPX-1S240-F-100 |
TPX-FME11* |
|
TPX-3Y208-F-100 |
TPX-FME14 |

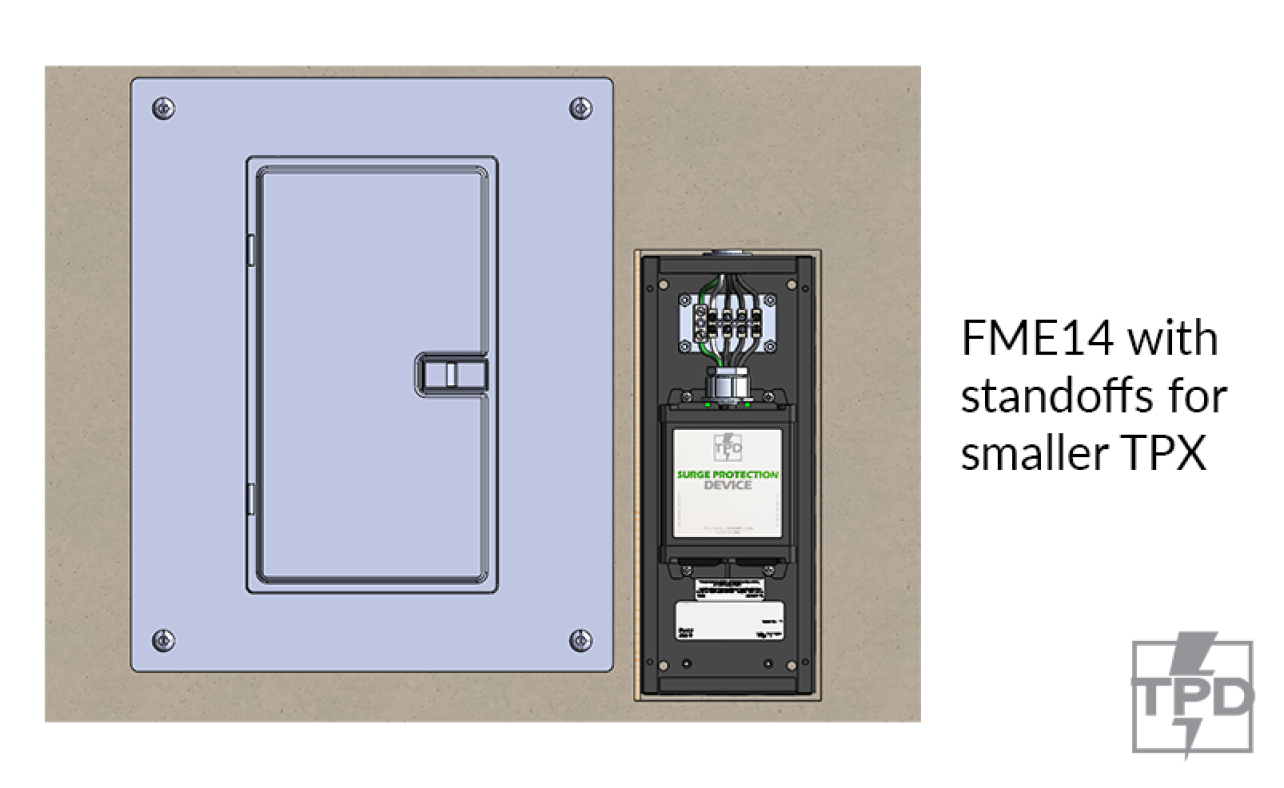

*The TPX-FME 14 has standoffs that can be used for smaller units if needed
Specifications
Construction
16 gauge carbon steel enclosure and cover
Textured black polyester powder coat finish
Corrosion-resistant construction
Aluminum accessory plates available
Compliance
UL 50 Listed Enclosure
NEMA Type 1 (Indoor Use)
cUL Listed
Included Hardware
Mounting screws and fasteners
PEM standoffs and studs
Washers and hex nuts
Removable cover assembly
See data sheet for more details.
