Power Quality Distribution Panel
The TPD-PNL Power Quality Distribution Panel combines electrical power distribution, integrated surge protection, and EMI/RFI filtering in a refined panel designed for high-end residential and custom integration projects. With its custom black finish, the TPD-PNL brings a clean, cohesive appearance to equipment rooms and custom installations while helping protect connected electronics from transient voltage surges and electrical noise. Designed for 120/240V residential systems, it can be used as a standalone distribution panel for dedicated equipment circuits or paired with a TPD Voltage Regulator when an application also requires voltage regulation. Ideal for selected lighting control, home automation, audio/video, networking, and other connected systems, the TPD-PNL brings power distribution and power quality protection together in one integrated solution.
Breaker Panel with Built-in Surge Protection
High-end installations deserve attention to every detail—including the panel that powers them. With its sleek appearance and custom black finish, the TPD-PNL adds a touch of class to the infrastructure behind lighting, automation, entertainment, and other connected systems.

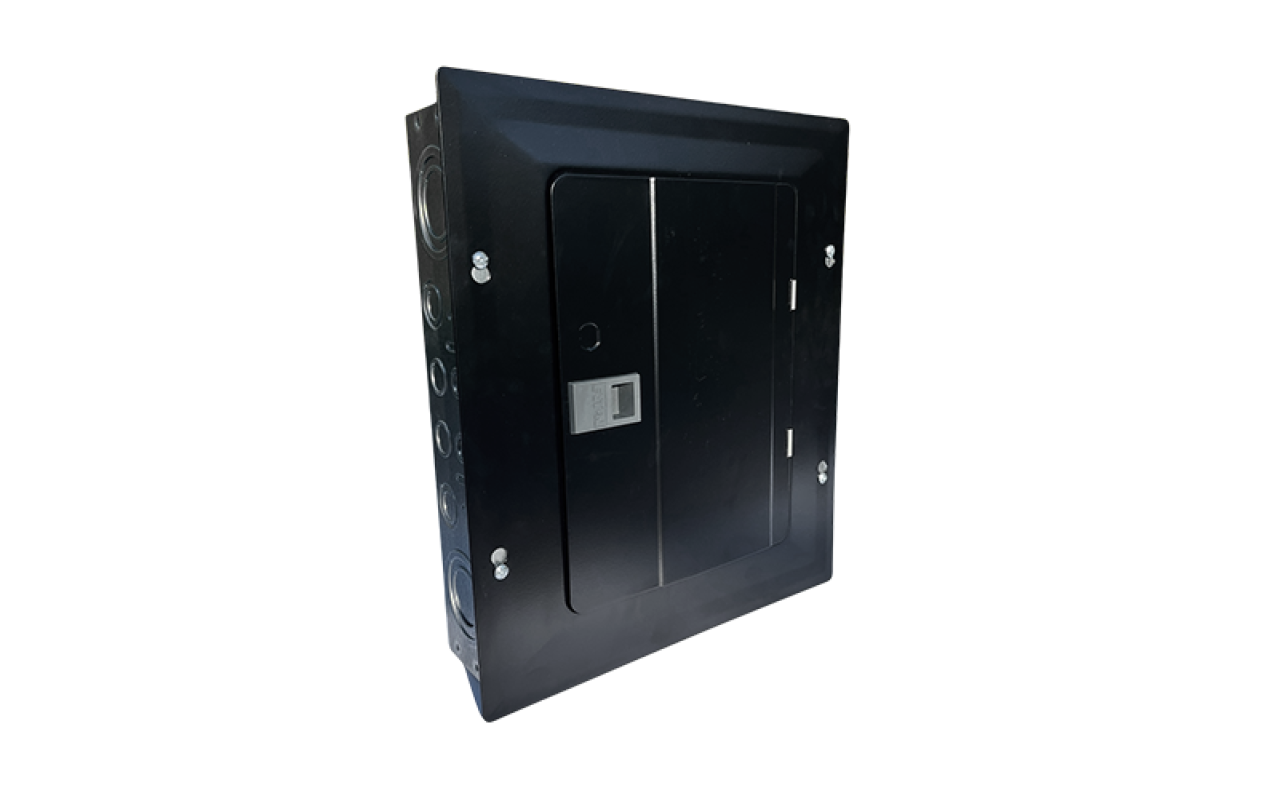

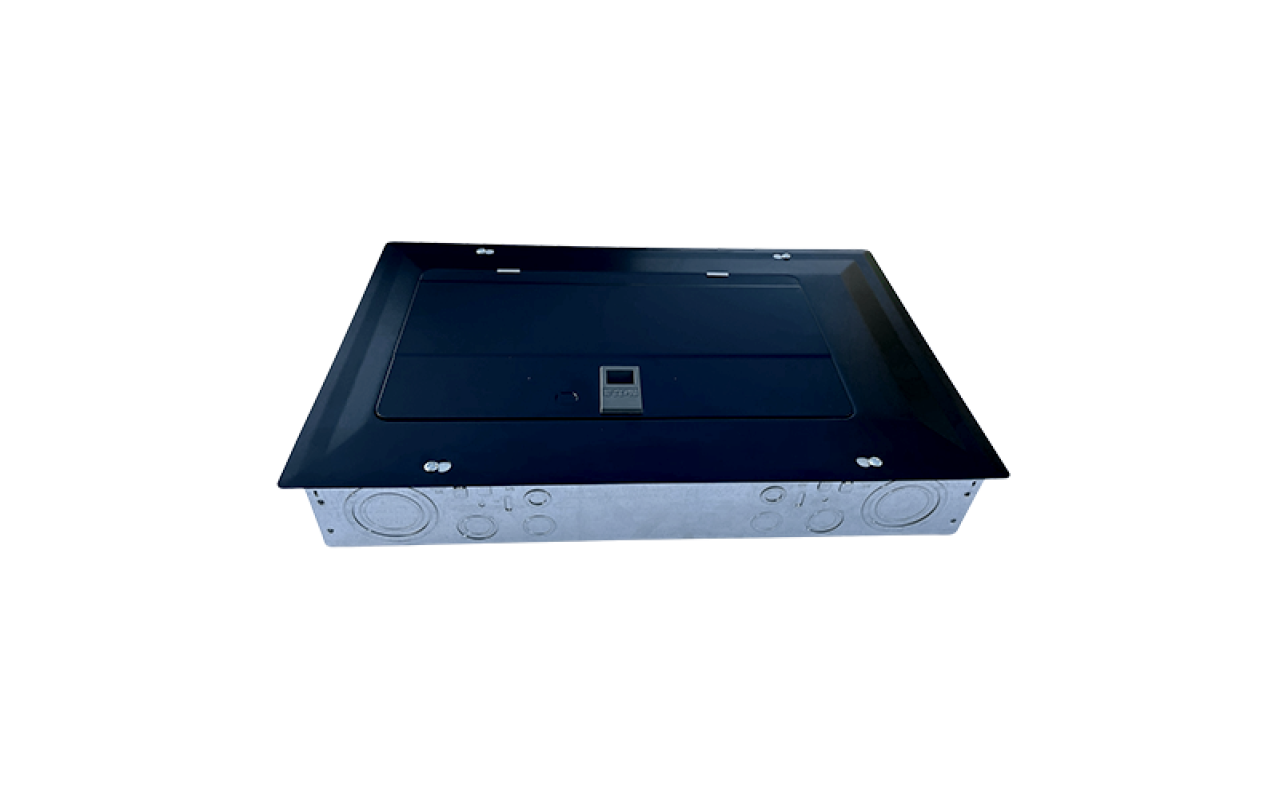

Available in two panel sizes, with surface or flush mounting, it gives integrators an attractive option for distributing power to selected equipment.
Integrated Surge Protection
Two integrated UL 1449 Listed surge protection modules help protect connected equipment from transient voltage surges. Each module connects through its own dedicated single-pole breaker.
The surge protection specifications include a peak surge current rating of 100kA per phase and protection modes covering line-to-neutral, line-to-ground, neutral-to-ground, and line-to-line.
Built-In Electrical Noise Filtering
Built-in UL 1283 Listed EMI/RFI filtering helps reduce electrical noise on the power supply serving connected equipment.
Power distribution, surge protection, and electrical noise filtering come together in a single panel designed for modern residential technology.
Standalone Distribution or Paired with Voltage Regulation
Team the TPD-PNL with an appropriately selected TPD Voltage Regulator when the application also calls for correction of voltage fluctuations. The panel provides distribution, surge protection, and filtering; the VR adds voltage regulation.
Contact TPD for help selecting the panel and VR combination for your project.
Dedicated equipment distribution
Use the TPD-PNL as a standalone panel to distribute power to selected equipment circuits, with surge protection and EMI/RFI filtering already integrated.
Applications for Custom Residential Installations
Consider the TPD-PNL for dedicated circuits serving:
- Lighting control systems and automation equipment
- Home theaters and Audio/Video systems
- Networking and connected-home equipment
- Selected sensitive residential equipment
- Equipment rooms in luxury homes and custom installations
Panel selection and circuit configuration depend on the connected loads and project requirements.
Models and Configurations
|
Configuration |
Panel spaces |
Included breakers* |
Dedicated surge breakers |
System voltage |
|

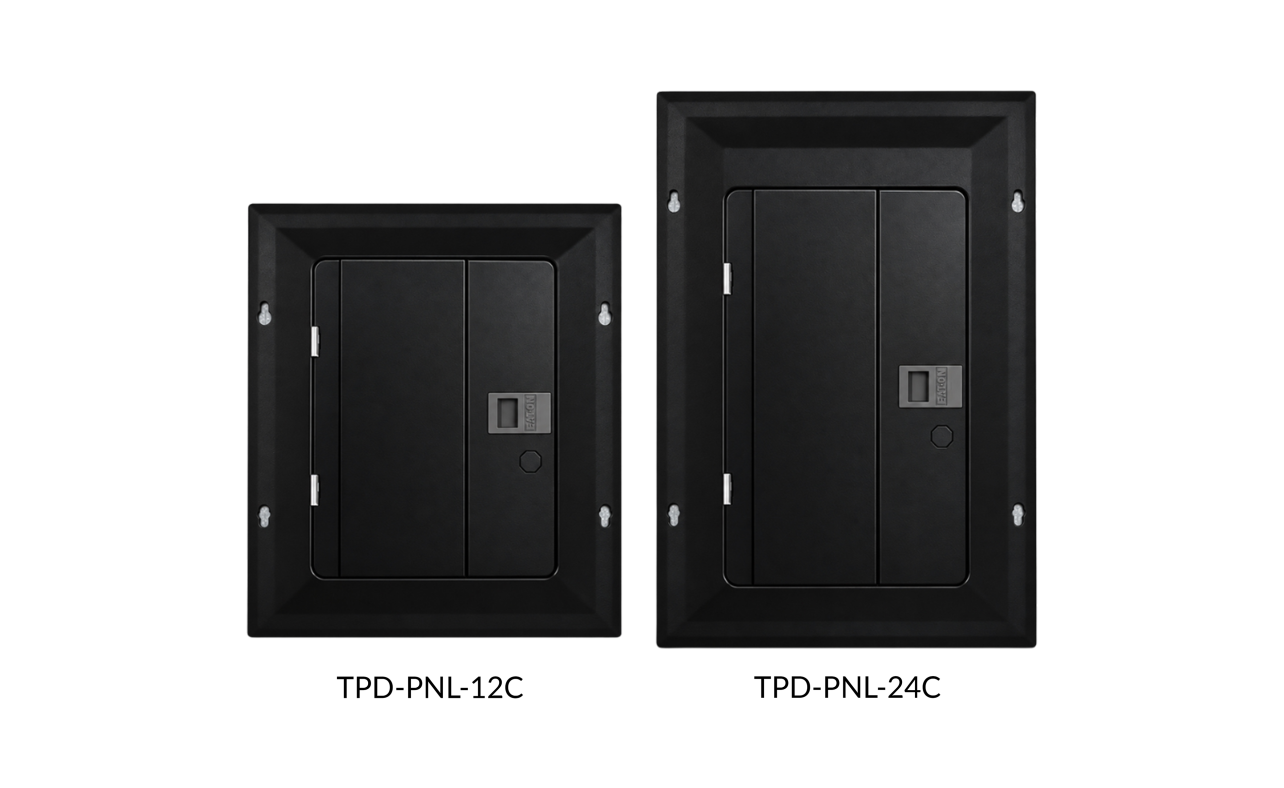

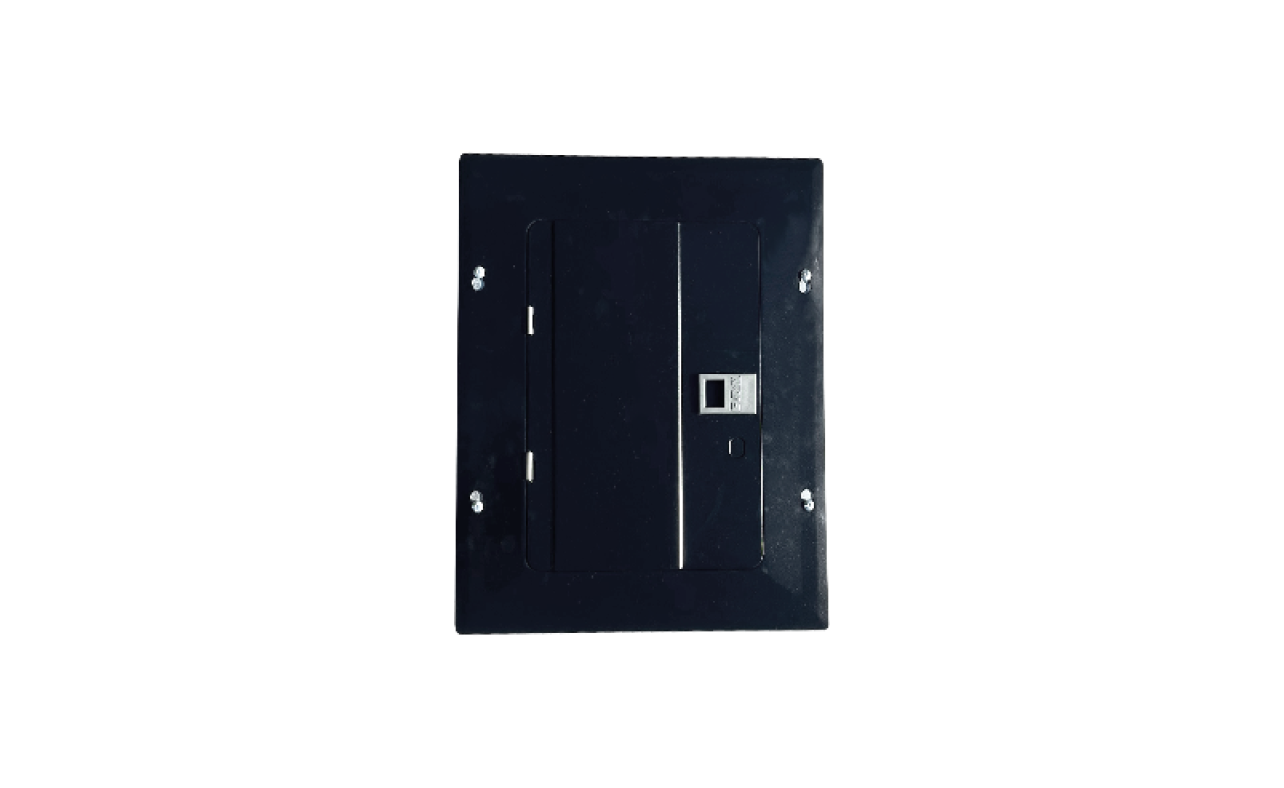

Smaller panel |
12 |
10 |
2 single-pole |
120/240 VAC |
|

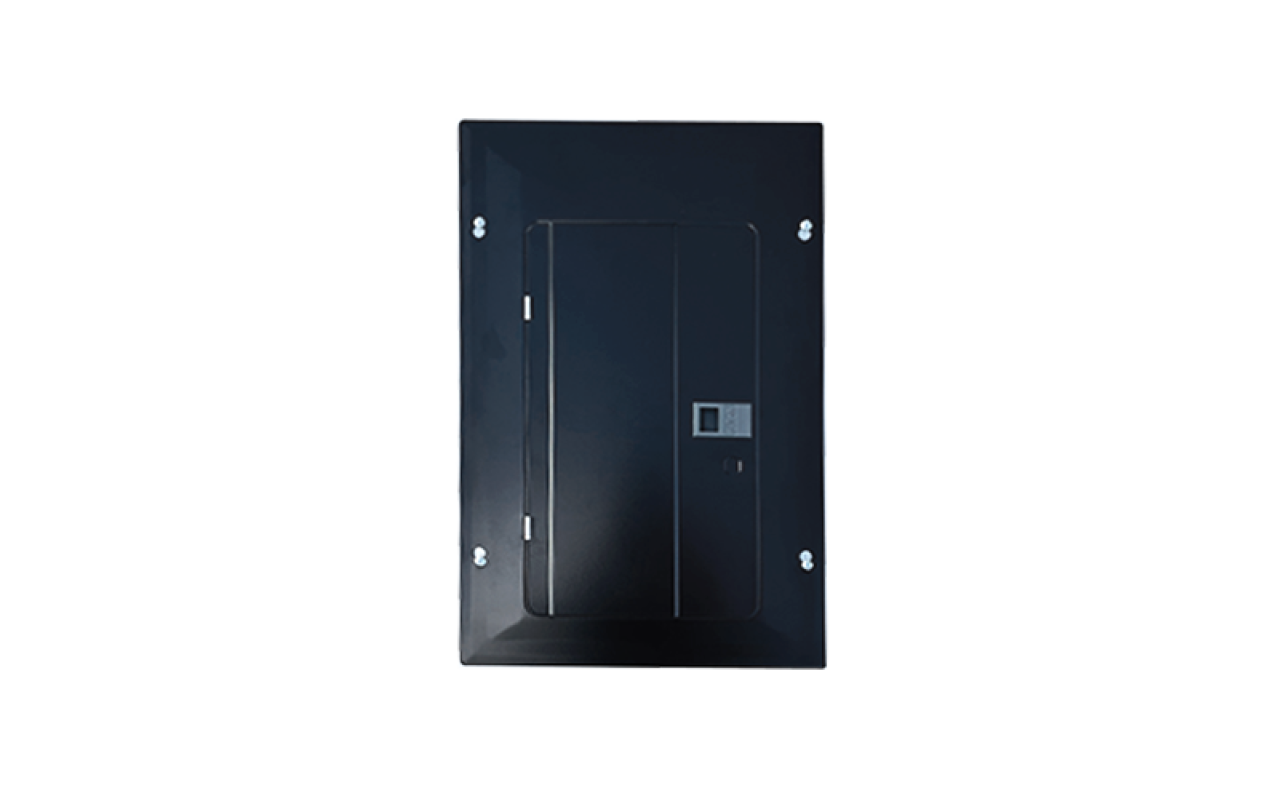

Larger panel |
24 |
22 |
2 single-pole |
120/240 VAC |
*Two panel spaces are dedicated to the integrated surge protection. Contact TPD for included breaker ratings and available configurations.
Product Specifications
|
Panel feature |
Specification |
|
Construction |
Main lug only |
|
Enclosure |
Metallic, NEMA 1, indoor |
|
Exterior |
Custom black finish |
|
Electrical system |
120/240V, 3W+G, maximum 125A |
|
Base-panel certifications |
UL 50 and UL 67 |
|
Compatible breaker family |
Eaton Type BR, 1-inch breakers |
|
Short circuit interrupt rating |
10kAIC |
|
Mounting |
Surface or flush |
|
12-space panel dimensions |
16.75″ × 14.31″ × 3.88″ |
|
24-space panel dimensions |
23.00″ × 14.31″ × 3.88″ |
|
Assembled weight |
26 lb / 37 lb |
|
Protection feature |
Specification |
|
Surge protection listing |
UL 1449, 5th Edition Listed |
|
EMI/RFI filter listing |
UL 1283 Listed |
|
SPD type |
Type 1 and Type 2 |
|
Peak surge current |
100kA per phase |
|
Protection modes |
L-N, L-G, N-G, L-L |
|
Integrated protection modules |
Two |
Plan Your Installation
Bring a touch of class and integrated protection to your next custom installation.
Contact TPD for panel selection, application guidance, and options for pairing the TPD-PNL with voltage regulation.
