Power Supplies

Use Transient Protection Design surge protection to protect power supply pathways that leave or enter of the building.

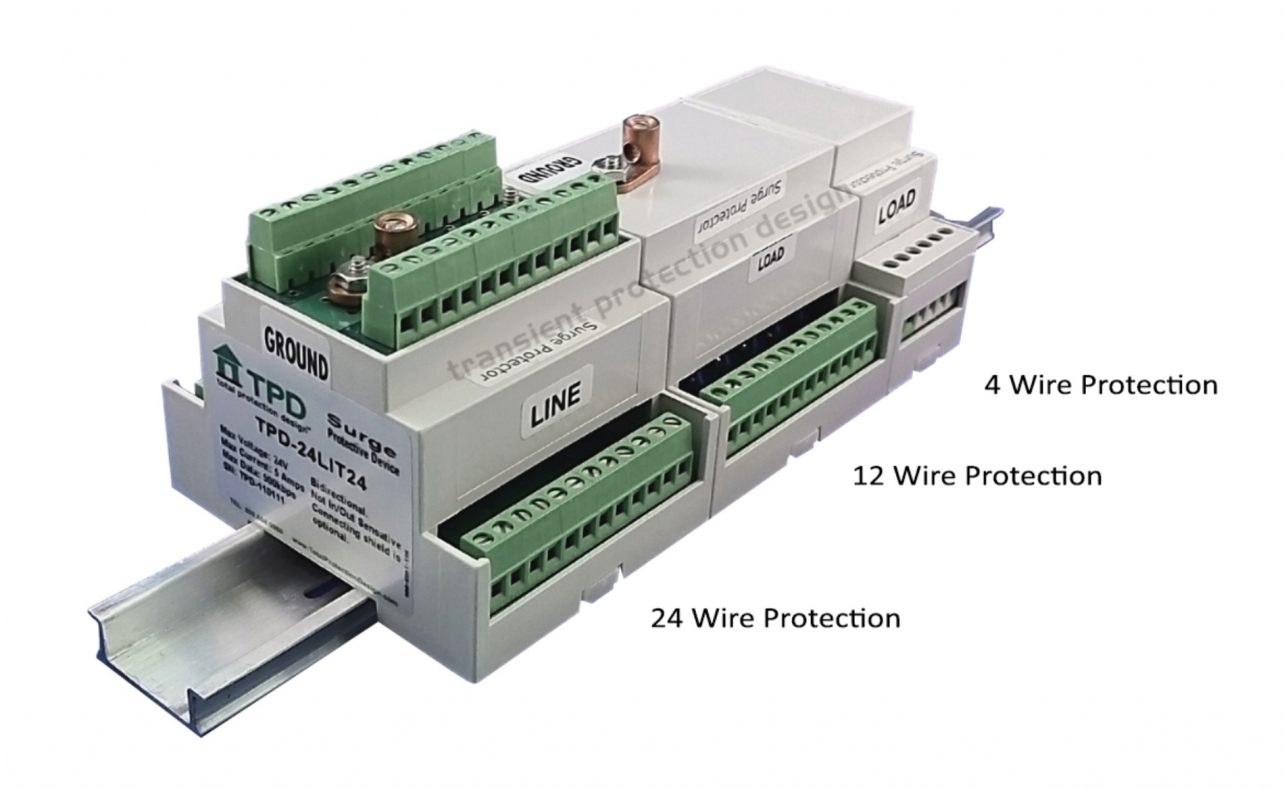

 TPD-xxLITyy (Example TPD-24LIT4 which is a 24V, 4 wire protector)
XX = Operating Voltage 24V or 36V systems
(use 24V for 5 to 24 volt; use 36V for 25 to 36 volt)
YY = Number Of Terminals 4, 12 or 24 terminal
Max Amperage: 5 Amps
Max Data Rate: 500kbps
Response Time: < 1 nanosecond
Strength: 6kA per pair; 3kA per wire
Ten Year Unlimited Free Replacement Warranty
Series Resistance: < 0.1 ohm
Enclosure Type: High impact, Non metallic
Din rail or screw down mountable

Count power supply pathways and pathways that enter or leave the building.
